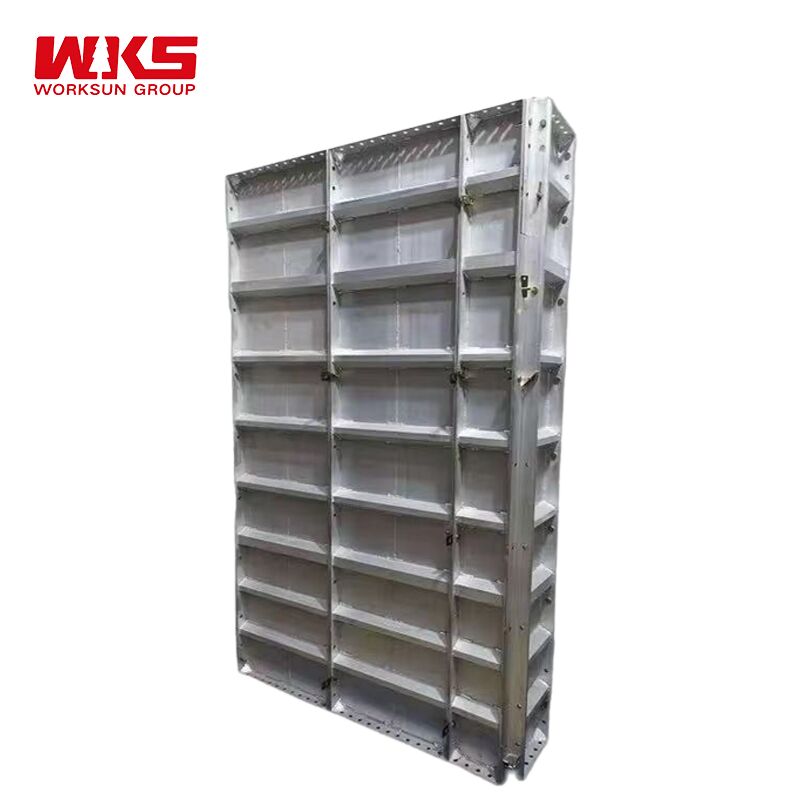

Efficient Aluminum Formwork System 1200mm Width Metal Formwork For High Rise Building Construction

Efficient Aluminum Formwork System 1200mm Width Metal Formwork For High Rise Building Construction

Brand Name:	WKS
MOQ:	50 piece
Price:	US $100.00 - 110.00/ Square Meter
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Aluminum Formwork System

Category:

Formwork&Aluminum Formwork

Aluminum Sheet Thickness:

4mm

Weight:

22-26 Kilograms Per Square Meter

Dimension:

Custom Or Standard Size

Colour:

Silver Or Grey Or Custom Color

Packing:

Plastic Packaging And Steel Strapping

Surface Treatment:

Powder Coating

Customize Or Not:

Available In Custom Or Standard Sizes

MOQ:

100 Square Meters

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Efficient Aluminum Formwork System

Aluminum Formwork System 1200mm

1200mm Metal Formwork

Product Description

Aluminum Formwork System 1200mm Width for High Rise Building Construction

The aluminum alloy formwork system is an efficient, modular construction solution specifically designed for cast-in-place concrete structures in the construction industry. The system uses 6061-T6 extruded aluminum alloy as its core material and advanced friction stir welding technology, aiming to replace traditional wood and steel formwork and achieve high-precision, high-turnover and low-cost construction in residential apartments, villa complexes and commercial buildings. Its core application lies in providing a strong and resilient structural performance and an excellent concrete finish without the need for secondary plastering through one-time integral pouring technology.

Product Specifications

Aluminum Alloy Features	Value
Shear-strength (Fva)	115N/SQMM
Poisson's ratio (Va)	0.3
Yield strength (Fa)	200N/SQMM
Elasticity modulus (Ea)	70KN/SQMM
Composition	Inner & Outer wall panel and corner panel Beam bottom & side panel and corner panel Slab panel & prop head and corner panel Staircase panel
Alloy Material	6061-T6
Material Type	Complete extrusion
Main Welding Type	Friction Stir Welding
Thickness of Panel	4mm
Thickness of Edge Frame	8mm
Height of Edge Frame	65mm or customization
Standard of Wall Panel Width	50mm-600mm
Standard of Wall Panel Height	2400mm-2600mm or customization
Standard of Slab Panel Size	400mm-600mm*1200mm or customization
Weight of Panel	24KG/㎡
Standard Prop Adjustable Range	1800mm-3300mm or customization

Applications

High-Rise Residential: Ideal for shear wall structures where repetitive floor plans allow for maximum cycle efficiency.
Utility Tunnels: Used in underground infrastructure due to its water-resistance and dimensional stability under high lateral pressure.
Affordable Housing Projects: Optimized for rapid 4-day or 5-day cycle construction schedules.
Commercial Basements: Provides high-load support for heavy slab thicknesses and complex column geometries.

Technical Advantages

200-300 Reuse Cycles: Ensures maximum ROI and lowers overall project costs by approximately 25%.
Friction Stir Welding (FSW): Guarantees structural integrity and minimizes panel deformation under high concrete pressure.
30% Construction Waste Reduction: Promotes a safer, cleaner site environment while eliminating the need for costly wall plastering.
24KG/m² Lightweight Efficiency: Enhances on-site safety by allowing manual assembly without the reliance on heavy cranes.

Frequently Asked Questions

Are you a trading company or a manufacturer?

Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 32 years.

What do you do?

Provide customers with professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we can provide samples. You will need to pay for the shipping cost.

What do you need in order to make a brief design and quotation when we have a construction project to be built?

Architectural and structural drawings of the project.

How to get quotation?

If you are a simple concrete pouring project, such as walls, swimming pools, main structures, and basements, and you have your own engineer, you can directly provide us with a bill of materials, and we will provide you with a quotation according to the bill of materials. If you are a concrete pouring project for apartments, residences, villas, etc., and need to use plastic formwork products as a whole, our professional consultants will communicate with you in detail. After you provide us with the engineering architectural drawings and structural drawings, our engineers will develop an application plan for you and provide you with a quotation based on the specific plan.

How long does it take to make a brief design and quotation after we offer the structural drawing?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

How long is the estimated delivery time after the contract is signed?

According to the complexity of the project, it usually takes 30-60 days to complete the stocking. We will estimate a more accurate delivery time for you during the planning and quotation process.

What is your terms of payment?

T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
