Modular Aluminium Formwork Construction Lightweight Aluminium Concrete Formwork For Industrial Structures

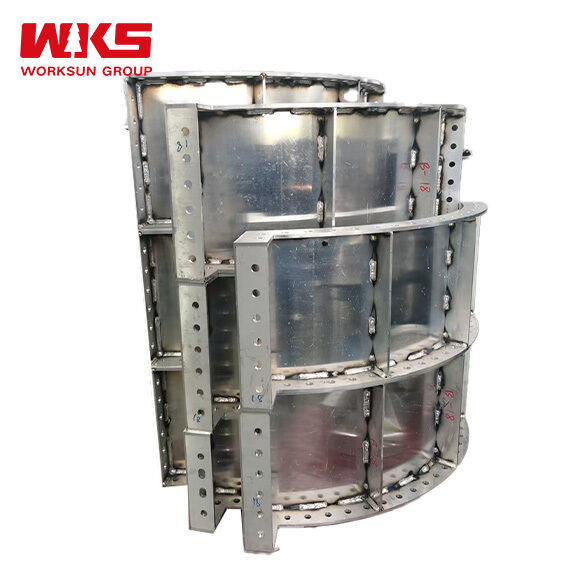

The Aluminum Formwork System is an integrated shuttering solution designed for rapid, high-quality construction of residential towers and commercial buildings. Utilizing extruded aluminum panels paired with an early-stripping support system, it enables monolithic pouring of walls, slabs, and columns with exceptional precision and reusability.

• Lightweight & Fast Assembly: Panels weigh only 22-28 kg/m², enabling manual handling without heavy cranes. The pin-and-wedge connection system allows semi-skilled labor to achieve cycle times of 4-5 days per floor.
• High Reusability & Cost Efficiency: Manufactured from high-strength 6061-T6 aluminum alloy, the system withstands over 300 cycles without significant deformation, drastically reducing the cost per use compared to timber formwork.
• Superior Concrete Finish: Tight tolerances and seamless joints minimize grout leakage, producing smooth, quality concrete surfaces that often eliminate the need for plastering.

• Material: Aluminum Alloy 6061-T6 (Tensile Strength ≥265 MPa)
• Panel Dimensions: Standard widths 400-600 mm (modular), thickness 4 mm, frame height 65 mm
• Load Capacity: Designed for fresh concrete pressures up to 60 kN/m²
• Surface Treatment: Mill finish or powder coating for enhanced durability

Our system utilizes precision-extruded profiles with a standardized "80% universal + 20% custom" component ratio, maximizing cross-project reuse. With integrated early-stripping technology and full technical support, we help contractors cut labor costs by 30% and achieve faster project turnaround while maintaining strict quality control from design to on-site guidance.

• High-Rise Residential Towers: Optimized for shear wall structures with typical floor heights of 2.8m to 3.2m
• Mass Housing Projects: Scalable solutions for rapid urban development
• Utility Tunnels: Heavy-duty panel configurations for underground infrastructure
• Institutional Buildings: Hospitals and schools requiring high precision and seismic resistance

• Structural Consistency: The CNC-milled contact surfaces maintain a flatness tolerance of ≤3mm per 2-meter span, eliminating the need for thick secondary plastering
• Operational Efficiency: The lightweight design (avg. 25kg/m²) allows for complete manual assembly without heavy crane intervention, achieving a 4-5 day per floor construction cycle
• High Load Resistance: Designed to withstand lateral pressure of up to 60 KN/m², ensuring zero panel deformation during high-slump concrete pouring
• Sustainability: 100% recyclable material with a high scrap value, reducing total project costs across multiple phases
