Reusable Aluminum Formwork System Powder Coating Concrete Formwork System

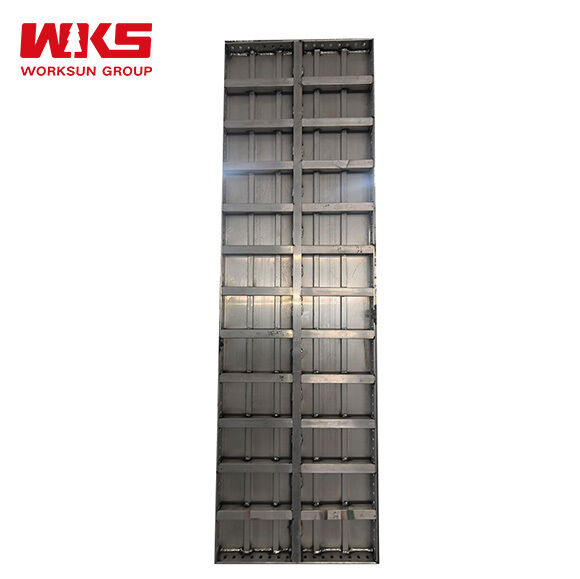

The Aluminum Formwork System is an engineered formwork solution for cast-in-place concrete structures, replacing traditional wood and steel. Comprising extruded aluminum panels, braces, and a fast-stripping mechanism, it enables rapid cycle casting for high-rise residential and commercial buildings, delivering a smooth finish with minimal labor.

• Fast Assembly & Stripping: Lightweight panels (approx. 25 kg/m²) allow manual handling without heavy cranes. The system supports a typical 4-5 day per floor cycle, significantly accelerating project timelines.
• High Reusability & Cost Efficiency: Made from 6061/6063-T6 aluminum alloy, the system withstands 200-300+ reuses. This high turnover rate drastically lowers the amortized cost per pour compared to disposable wood forms.
• Superior Concrete Finish: Precision-machined panels and tight joints produce清水 concrete surfaces with minimal seams, often eliminating the need for plastering and reducing finishing costs.

• Material: Aluminum Alloy 6061-T6 / 6063-T6
• Panel Thickness: 4-5 mm (typical)
• Load Capacity: ≥ 60 kN/m² (standard system)
• Weight: 23-28 kg/m²
• Standard Sizes: Custom-designed; common panel widths 400-600 mm

• High-End Residential Towers: Projects requiring exposed concrete finishes or minimal interior decoration layers.
• Commercial Office Hubs: Large-scale monolithic pours where structural verticality is critical for curtain wall installation.
• Educational & Healthcare Facilities: High-traffic public buildings demanding durable, smooth, and easy-to-maintain wall surfaces.
• Precast Component Factories: Used as high-stability master molds for repetitive concrete element production.

• Superior Surface Leveling: The system achieves a surface flatness that consistently meets Plaster-Free requirements, reducing total interior finishing costs by approximately 20-30%.
• Zero-Leakage Connection: Utilizing a precision-engineered pin and wedge system with reinforced tie-rods, the formwork maintains absolute structural rigidity, preventing slurry loss during high-vibration pouring.
• Exceptional Dimensional Stability: The T6 heat treatment process ensures the panels retain their geometric shape across 300+ reuse cycles, preventing the "bowing" effect common in lower-grade alloy systems.
• Optimized Worksite Safety: The lightweight nature of the aluminum panels facilitates safer manual handling, significantly reducing the risk of musculoskeletal injuries compared to traditional steel shuttering.

Our system offers full BIM-based layout design support to maximize panel reuse across projects. With certified load-bearing capacity and anti-slip decking, it ensures site safety while reducing waste. We provide complete kits (panels, props, ties) with technical supervision for fast on-site deployment.
