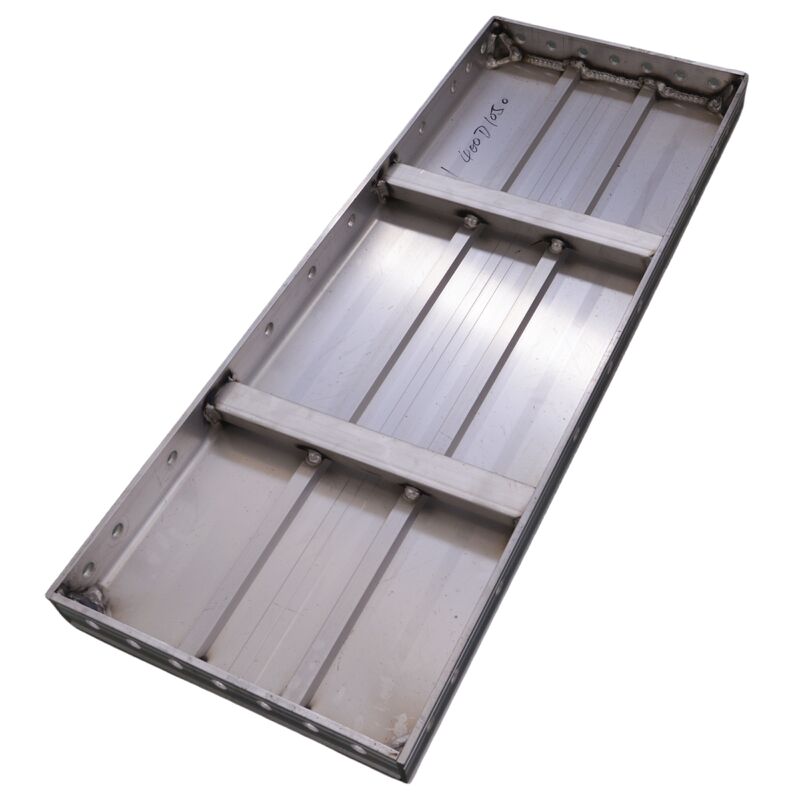

All Aluminum Formwork System High Strength Metal Shuttering Formwork Silver / Grey

The Aluminum Formwork System is an integrated construction solution comprising high-strength aluminum alloy panels, a fast-assembly locking mechanism (pins/wedges), and an independent steel prop system. Designed for rapid-cycle construction of high-rise residential and commercial buildings, it enables monolithic concrete pouring for walls, slabs, columns, and stairs with exceptional dimensional accuracy.

• Fast-Demold & High Turnover: Engineered as an early-stripping system, it allows for a typical 4-5 day floor cycle (one set of formwork + three sets of supports), drastically accelerating project timelines compared to traditional timber formwork.
• Lightweight Yet High-Strength: Weighing only 20-25 kg/m², panels are manageable by hand without heavy machinery, yet offer a high load-bearing capacity of up to 60 kN/m², sufficient for most residential concrete pressures.
• Precision Engineering for Quality Finish: Manufactured using extruded profiles, the system ensures tight joint tolerances, resulting in smooth, fair-faced concrete surfaces that often eliminate the need for plastering.

• Panel Specifications: Standard thickness 65 mm (profile depth); common widths 400 mm, 600 mm; lengths up to 2400 mm. Material: 6061-T6 or 6082-T6 aluminum alloy.
• Support System: Independent steel props (Q235/Q345) with adjustable heads; typical layout spacing 1200 mm × 1200 mm.
• Durability: Designed for 300+ reuses under standard conditions, significantly outperforming wooden formwork in lifespan.

Our system offers superior long-term ROI through high recyclability and minimal non-standard panel requirements (typically only 15-20% customization per new project). With comprehensive technical support including BIM-based layout design, we ensure optimal material utilization and on-site efficiency for global contractors.

• Free Consultation Service: You provide us with construction drawings to evaluate which formwork system solution is more cost-effective and provide a detailed quotation list for you.
• Full Process One-on-One Project Team Service: Each project will have an independent team to provide you with professional engineering solution services, business communication services, and on-site construction management services.
• Project Emergency Plan Service: The project scheme formulation process will cautiously consider the emergency handling of aluminum alloy formwork system products during use.
