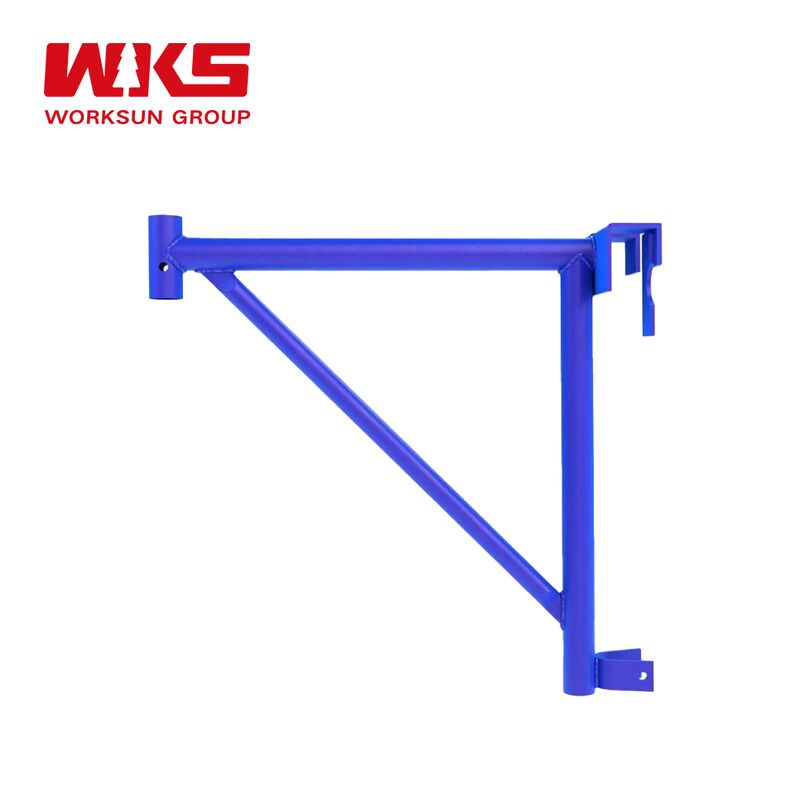

Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support

Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support

Brand Name: WKS
MOQ: 200/ Piece
Price: US $1.00 - 2.00/ Piece
Payment Terms: T/T
Supply Ability: 1000 piece in 10 days
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
ROHS
Product Name:
Scaffold Components
Material:
Q235
Application:
Office Building
Scaffolding Part Type:
Cuplock Scaffolding Accessories
Type:
Swivel
Usage:
Construction Usage
Colour:
Sliver
Advantage:
Easy Installation
Packing:
Bundle
Keyword:
Scffolding
Packaging Details:
Bundled / Tied in bundles/Optimization of container loading
Highlight:

Heavy Duty Scaffold Components

,

Blue Scaffolding Side Bracket

,

Heavy Duty Scaffolding Side Bracket

Product Description
Heavy Duty Scaffolding Accessory For Secure Load Bearing And Support
Essential Hardware for Safe & Efficient Construction

Scaffolding Accessories are critical components—including base jacks, couplers, casters, and ledger heads—that ensure the structural integrity, stability, and mobility of scaffolding systems. These parts are vital for adapting scaffolding to complex building layouts, leveling on uneven ground, and enhancing worker safety during construction, maintenance, and repair projects.

Key Features & Functions
  • High Load Capacity & Safety: Manufactured from high-grade Q235 steel or cast iron, these accessories provide robust support for heavy loads. Components like screw jacks offer precise height adjustment to ensure the scaffold remains level and stable on uneven surfaces.
  • Enhanced Mobility & Flexibility: Heavy-duty casters with locking mechanisms allow for easy relocation of mobile scaffold towers. Accessories like swivel couplers and ledger heads enable versatile configurations around obstacles and complex facades.
  • Corrosion Resistance: Hot-dip galvanized or electroplated surface treatment provides excellent protection against rust, ensuring durability and long service life even in harsh outdoor environments.
Technical Parameters
Parameter Specifications
Materials Q235 Steel, Cast Iron, or Aluminum Alloy for lightweight options
Surface Treatment Hot-dip galvanized (thickness 55-85μm), electro-galvanized, or powder-coated
Common Types Base Jacks (adjustable range typically 300-600mm), Swivel Couplers (for 48.3mm tubes), Brake Casters (load capacity 150-250kg per wheel)
Standards Compliant with EN74, BS1139, and other international safety standards
Competitive Advantages

Our scaffolding accessories are designed for full compatibility with major scaffolding systems (Ringlock, Cuplock, Tube & Clamp), ensuring seamless integration and reducing assembly time. With rigorous quality control on raw materials and manufacturing precision, we deliver reliable, reusable components that minimize on-site risks and lower the total cost of ownership for contractors.

Product Specifications
Steel Tube
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 0 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 1
  • Weight: 3.56KG/m-4.37KG/m or customized
  • Material: Q195/Q235/Q345 or customized
  • Length: 6m/12m or customized
  • Diameter: 48.3/60.3mm or customized
  • Wall Thickness: 0.8-12mm or customized
  • Surface treatment: Galvanized or customized
British Swivel Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 2 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 3
  • Weight: 0.99KG/1.12KG by different process
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
British Double Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 4 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 5
  • Weight: 0.82KG/0.99KG by different process
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
British Sleeve Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 6 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 7
  • Weight: 1.0KG by different process
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Thickness: 3.5mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
British Inner Joint Pin
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 8 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 9
  • Weight: 0.7KG/1.05KG by different process
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
British Half Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 10 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 11
  • Weight: 0.45KG
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Thickness: 4.75mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
British Board Retain Clamp
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 12 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 13
  • Weight: 0.56KG/0.61KG
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Thickness: 4.75mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Putlog Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 14 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 15
  • Weight: 0.57KG-0.63KG by different process
  • Material: Q235
  • Standard: BS1119 EN74
  • Size: 48.3*48.3mm/48.3*60.3mm
  • Thickness: 4.75mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Girder Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 16 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 17
  • Weight: 1.5KG
  • Material: Q235
  • Size: 48.3mm
  • Process: Stamping or Forging
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Japanese Double Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 18 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 19
  • Weight: 0.67KG
  • Material: Q235/Q345
  • Size: 48.3mm
  • Thickness: 3mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Japanese Swivel Coupler
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 20 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 21
  • Weight: 0.59KG-0.67KG
  • Material: Q235
  • Size: 48.3mm
  • Thickness: 4.75mm
  • Process: Pressed or Forged
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Japanese Inner Joint Pin
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 22
  • Weight: 0.58KG-0.9KG by different process
  • Material: Q235
  • Size: 48.3*48.3/48.6*48.6mm
  • Process: Pressed
  • Color: Gold & silver or customized
  • Surface treatment: Galvanized or customized
Additional Scaffolding Products
Chinese Scaffolding Couplers
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 23 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 24 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 25
Europe Scaffolding Couplers
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 26 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 27 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 28
Ring-Lock System Components
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 29 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 30 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 31
Scaffold Pins
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 32 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 33 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 34
Scaffolding Side Brackets
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 35 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 36 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 37
Ringlock Components
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 38 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 39 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 40
Ring-Lock Scaffolding U Ledger End
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 41 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 42 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 43
Steel Scaffold Plank
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 44 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 45
Mobile Scaffolding Casters
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 46 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 47 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 48
Ring-Lock Scaffold Base Jack
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 49 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 50 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 51
Scaffold Wing Nuts
Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 52 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 53 Heavy Duty Scaffold Components Blue Scaffolding Side Bracket For Secure Load Bearing And Support 54
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in formwork and scaffolding products for over 32 years.
What do you do?
We provide customers with professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples? Is the sample chargeable or free?
Yes, we can provide samples. You will need to pay for the shipping cost.
What do you need in order to make a brief design and quotation when we have a construction project to be built?
Architectural and structural drawings of the project.
How to get quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects like apartments and residences, our consultants will develop application plans based on your engineering drawings.
How long does it take to make a brief design and quotation after we offer the structural drawing?
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.
How long is the estimated delivery time after the contract is signed?
According to project complexity, it usually takes 30-60 days to complete stocking. We provide more accurate delivery time estimates during the planning process.
What is your terms of payment?
T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy, or L/C.
