Bundled / Tied in bundles/Optimization of container loading
Highlight:
Silver Scaffold Jack Base Plate
,
Q235 Scaffolding Components
,
Scaffolding Components Customized
Product Description
Factory Direct Q235 Material Steel Jack Base Plate for Easy Installation in Cuplock Scaffolding Accessories
High-quality steel jack base plates and scaffolding components for building construction projects.
Scaffolding Accessory Overview
Scaffolding is an essential temporary structure in construction used to support workers, materials, and equipment. It consists of several components that can be assembled to accommodate different heights and working environments.
Product Specifications
Steel Tube
Weight: 3.56KG/m-4.37KG/m or customized
Material: Q195/Q235/Q345 or customized
Length: 6m/12m or customized
Diameter: 48.3/60.3mm or customized
Wall Thickness: 0.8-12mm or customized
Surface treatment: Galvanized or customized

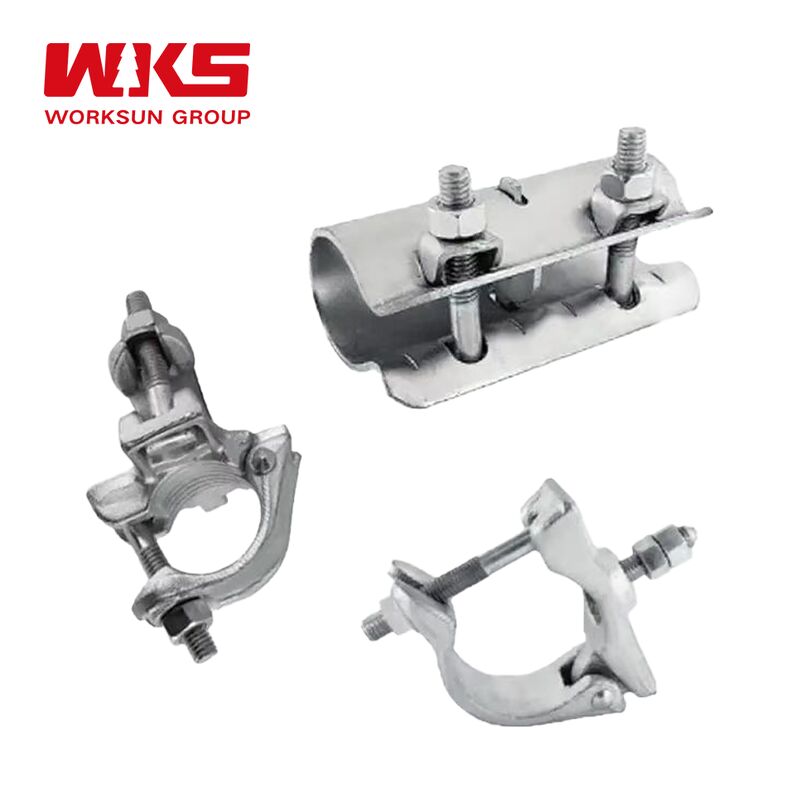

British Swivel Coupler
Weight: 0.99KG/1.12KG by different process
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
British Double Coupler
Weight: 0.82KG/0.99KG by different process
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
British Sleeve Coupler
Weight: 1.0KG by different process
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Thickness: 3.5mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
British Inner Joint Pin
Weight: 0.7KG/1.05KG by different process
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
British Half Coupler
Weight: 0.45KG
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Thickness: 4.75mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
British Board Retain Clamp
Weight: 0.56KG/0.61KG
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Thickness: 4.75mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Putlog Coupler
Weight: 0.57KG-0.63KG by different process
Material: Q235
Standard: BS1119 EN74
Size: 48.3*48.3mm/48.3*60.3mm
Thickness: 4.75mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Girder Coupler
Weight: 1.5KG
Material: Q235
Size: 48.3mm
Process: Stamping or Forging
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Japanese Double Coupler
Weight: 0.67KG
Material: Q235/Q345
Size: 48.3mm
Thickness: 3mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Japanese Swivel Coupler
Weight: 0.59KG-0.67KG
Material: Q235
Size: 48.3mm
Thickness: 4.75mm
Process: Pressed or Forged
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Japanese Inner Joint Pin
Weight: 0.58KG-0.9KG by different process
Material: Q235
Size: 48.3*48.3/48.6*48.6mm
Process: Pressed
Color: Gold & silver or customized
Surface treatment: Galvanized or customized
Additional Scaffolding Products
Chinese Scaffolding Couplers
Europe Scaffolding Couplers
Ring-Lock System Components
Scaffold Pins
Scaffolding Side Brackets
Ringlock Components
Ring-Lock Scaffolding U Ledger End
Steel Scaffold Plank
Mobile Scaffolding Casters
Ring-Lock Scaffold Base Jack
Scaffold Wing Nuts
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in formwork and scaffolding products for over 32 years.
What do you do?
We provide customers with professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples? Is the sample chargeable or free?
Yes, we can provide samples. You will need to pay for the shipping cost.
What do you need in order to make a brief design and quotation when we have a construction project to be built?
Architectural and structural drawings of the project.
How to get quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects like apartments and residences, our consultants will develop application plans based on your engineering drawings.
How long does it take to make a brief design and quotation after we offer the structural drawing?
Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.
How long is the estimated delivery time after the contract is signed?
According to project complexity, it usually takes 30-60 days to complete stocking. We provide more accurate delivery time estimates during the planning process.
What is your terms of payment?
T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy, or L/C.
