Corrosion Resistant Construction Formwork Accessories High Load Capacity Scaffolding Formwork Accessories

Brand Name:	WKS
MOQ:	200 Piece
Price:	US $1.00 - 2.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Construction Formwork Accessories

Size:

500*2000mm, 1000*2000mm Etc

Tube Length:

750mm 720mm 800mm 900mm 1200mm

Width:

800mm

Pitch:

10mm

Standardcompliance:

Meets ASTM And EN Standards

Sample:

Available

Reusability:

Reusable Multiple Times

Load Capacity:

3500LBS

Weight:

Lightweight To Heavy Duty Options

Color:

Typically Silver / Black / Custom Colors Available

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Corrosion Resistant Construction Formwork Accessories

High Load Capacity Scaffolding Formwork Accessories

Scaffolding Formwork Accessories Corrosion Resistant

Product Description

Formwork Brace Accessory For Enhanced Safety And Load Distribution

Construction Formwork Accessories Overview

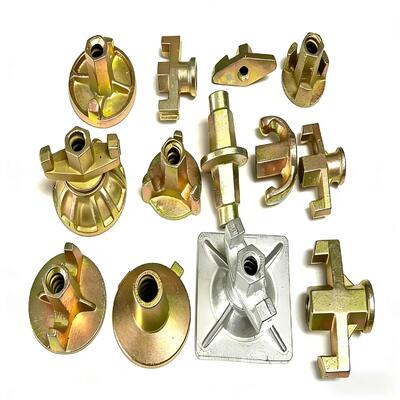

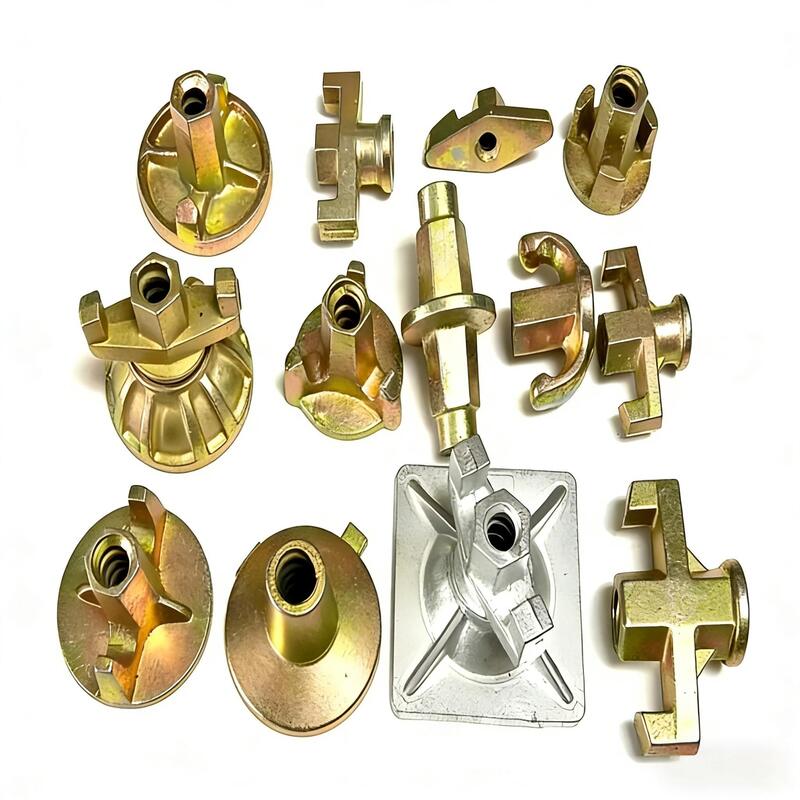

Construction Formwork Accessories are essential hardware components—including tie rods, clamps, spacers, and cones—used to secure and align formwork systems during concrete pouring. These high-strength parts ensure dimensional accuracy, prevent concrete leakage, and withstand high hydrostatic pressure in building foundations, walls, and columns.

Key Features & Functions

High Load Capacity: Manufactured from Q235 steel or QT500-7 cast iron, these accessories provide tensile strength to resist concrete bursting pressure, with tie rod breaking loads ranging from 90kN to over 250kN depending on diameter.
Reusable & Corrosion-Resistant: Hot-dip galvanized or electroplated surface treatment ensures durability for multiple reuse cycles, reducing long-term project costs.
Quick Assembly System: Standardized threads (e.g., M12, M16, M20) and rapid clamps enable fast installation and stripping, minimizing on-site labor time.

Technical Parameters

Tie Rods: Standard diameters 12mm, 16mm, 20mm; lengths customizable from 1m to 6m.
Clamps & Nuts: Forged or cast components with precise threading; compatible with timber, steel, and aluminum formwork.
Standards: Designed to meet international construction safety requirements for formwork systems.

Competitive Advantages

Our accessories offer full compatibility with major formwork brands, ensuring seamless integration. With strict quality control on raw materials and threading precision, we deliver reliable performance for high-rise buildings and infrastructure projects, significantly reducing the risk of formwork failure and concrete defects.

Product Specifications

Product	Specifications & Features	Function
	Weight: Wedge: 0.03KG; Pin: 0.064KG Material: Q235 Steel Color: Silver/Yellow Size: Pin: 45mm-200mm Diameter: 16mm Surface treatment: Plain or Galvanized	The wedge & pin are used as fastening devices to make all aluminum alloy panels link firmly.
	Weight: 0.75/1.45/1.5/2.25KG/m with different diameters Material: Q235 45# Color: Gold, silver and raw color Size: Length customized by customer Diameter: 10/12/15/16/17/20/22mm Surface treatment: Galvanized or black Breaking load: 90KN-260KN with different diameters	The tie rod is used as a connecting device to link wall panels firmly in various formwork systems.
	Weight: 0.28-1.3KG with different sizes Material: Q235 or QT450 Color: Gold, silver and raw color Plate diameter: 50-130mm with different sizes Thread diameter: 12/15/17/22mm or customized Surface treatment: Galvanized or painted	Used with tie rod to link wall & column panels firmly in various formwork systems.
	Weight: 25-28KG/SQM Material: Q235 Color: Silver or customized Adjustable size range: 600-5500mm Surface treatment: Galvanized or painted	Used in column formwork system to firm the panels and prevent deviation.
	Weight: 2.8KG/4.4KG by production process Material: Q235/Q450/Q345 Size: 430/434mm Process: Casting iron or forging Color: Gold & silver or customized Surface treatment: Galvanized or natural	Used in steel frame formwork system to link and firm wall panels tightly.
	Weight: 4.3KG Material: Steel Process: Casting iron or forging Color: Gold & silver or customized Surface treatment: Galvanized	Used in steel frame formwork system to link and firm wall panels tightly.
	Weight: 4.7KG-31KG by different sizes Material: Q195/Q235/Q345 Normal Size: 2200-3500mm/2200-3900mm/2200-4000mm or customized Tube thickness: 1.5mm-3mm Outer tube diameters: 48/56/60mm Inner tube diameters: 40/48mm Color: Blue, red, yellow, green or customized Surface treatment: Dipping painted	Used in slab formwork system to support slab panels and adjust them to the same horizontal plane.
	Weight: 12.18-43.78KG by different sizes Material: Q235 Size: 900mm+1800mm or customized Tube thickness: 1.5mm-3.0mm Outer tube diameters: 48/56/60mm Inner tube diameters: 40/48mm Color: Blue, red, yellow, green or customized Surface treatment: Spray painted/powder coated/galvanized	Used in formwork system to support wall panels and ensure proper positioning.
	Weight: 0.094-0.225KG by different sizes Material: Q235 steel Size: 210, 250, 240, 300, 320mm Color: Silver Surface treatment: Galvanized	Used in aluminum alloy formwork system to link wall panels and ensure accurate positioning.
	Weight: 2.5KG Material: Q195/Q235 steel Height: 330mm or customized Size: 230*140mm or customized Sleeve thickness: 2.5/3.0/3.5/4mm etc Color: Silver Surface treatment: Galvanized, painted or customized	Used in H20 timber beam formwork system to support H20 timber beams.
	Weight: 0.32KG-0.72KG Material: QT450/Q235 Size: φ60mm, φ76mm Color: Customer required Process: Ductile Iron Casting Surface treatment: Galvanized	Used in support system of formwork to adjust the steel prop.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company.
Our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 32 years.

What do you do?

Provide customers with professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we can provide samples. You will need to pay for the shipping cost.

What do you need in order to make a brief design and quotation when we have a construction project to be built?

Architectural and structural drawings of the project.

How to get quotation?

For simple concrete pouring projects with your own engineer, provide us with a bill of materials for quotation.
For complex projects requiring plastic formwork products, our professional consultants will develop an application plan based on engineering drawings and provide quotation.

How long does it take to make a brief design and quotation after we offer the structural drawing?

Generally, it takes about 5-8 days to complete the specific plan and detailed quotation.

How long is the estimated delivery time after the contract is signed?

According to project complexity, it usually takes 30-60 days to complete stocking. We provide more accurate delivery time during planning and quotation process.

What is your terms of payment?

T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
