Customized Construction Formwork Accessories Silver Formwork Clamp For Slab Support

Brand Name:	WKS
MOQ:	200 Piece
Price:	US $1.00 - 2.00/ Piece
Payment Terms:	T/T
Supply Ability:	1000 piece in 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ROHS

Product Name:

Construction Formwork Accessories

Size:

500*2000mm, 1000*2000mm Etc

Tube Length:

750mm 720mm 800mm 900mm 1200mm

Width:

800mm

Pitch:

10mm

Standardcompliance:

Meets ASTM And EN Standards

Sample:

Available

Reusability:

Reusable Multiple Times

Load Capacity:

3500LBS

Weight:

Lightweight To Heavy Duty Options

Color:

Typically Silver / Black / Custom Colors Available

Packaging Details:

Bundled / Tied in bundles/Optimization of container loading

Highlight:

Customized Construction Formwork Accessories

Construction Formwork Accessories Silver

Silver Formwork Clamp

Product Description

Formwork Accessory Components For Slab Support And Beam Shoring Systems

Construction Formwork Accessories are essential hardware components—including tie rods, clamps, nuts, and spacers—used to secure and align formwork systems during concrete casting. These high-strength parts ensure dimensional accuracy, prevent concrete leakage, and withstand high hydrostatic pressure in building foundations, walls, and columns.

Key Features & Functions

High Load Capacity: Manufactured from Q235 steel or QT500-7 cast iron, these accessories provide tensile strength to resist concrete bursting pressure, with tie rod breaking loads ranging from 90kN to over 250kN depending on diameter.
Reusable & Corrosion-Resistant: Hot-dip galvanized or electroplated surface treatment ensures durability for multiple reuse cycles, reducing long-term project costs.
Quick Assembly System: Standardized threads (e.g., M12, M16, M20) and rapid clamps enable fast installation and stripping, minimizing on-site labor time.

Technical Parameters

Tie Rods: Standard diameters 12mm, 16mm, 20mm; lengths customizable from 1m to 6m.
Clamps & Nuts: Forged or cast components with precise threading; compatible with timber, steel, and aluminum formwork.
Standards: Designed to meet international construction safety requirements for formwork systems.

Competitive Advantages

Our accessories offer full compatibility with major formwork brands, ensuring seamless integration. With strict quality control on raw materials and threading precision, we deliver reliable performance for high-rise buildings and infrastructure projects, significantly reducing the risk of formwork failure and concrete defects.

Product Specifications

Product	Specifications & Features	Function

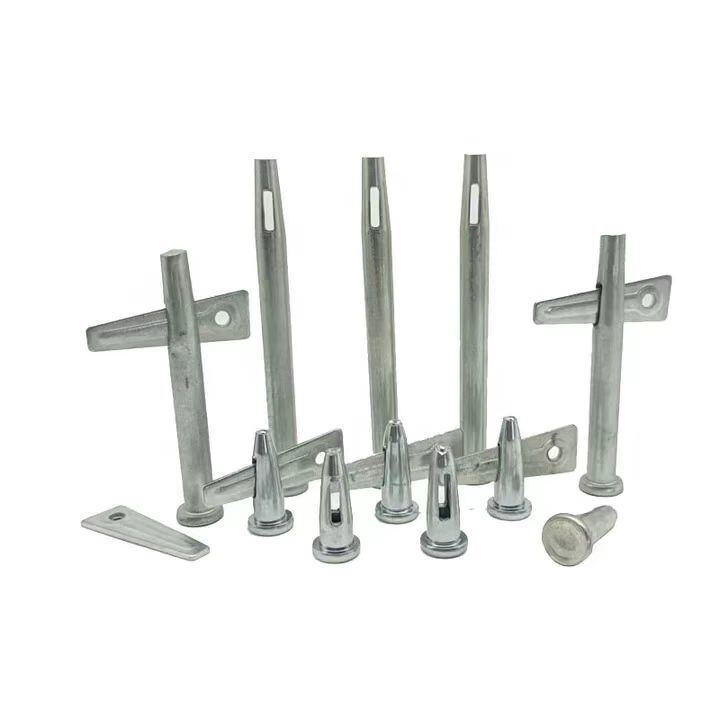

Wedge & Pin	Weight: Wedge: 0.03KG; Pin: 0.064KG Material: Q235 Steel Color: Silver/Yellow Size: Pin: 45mm-200mm Diameter: 16mm Surface treatment: Plain or Galvanized	Fastening device used to securely link all aluminum alloy panels together.
Tie-Rod	Weight: 0.75/1.45/1.5/2.25KG/m (varies by diameter) Material: Q235 45# Steel Color: Gold, Silver, Raw Size: Custom length Diameter: 10/12/15/16/17/20/22mm Surface treatment: Galvanized or Black Breaking load: 90KN-260KN (varies by diameter)	Connecting device for firmly linking wall panels in various formwork systems.
Wing Nut & Anchor Nut	Weight: 0.28-1.3KG (varies by size) Material: Q235 or QT450 Color: Gold, Silver, Raw Plate diameter: 50-130mm Thread diameter: 12/15/17/22mm or custom Surface treatment: Galvanized or Painted	Used with tie rods to securely link wall and column panels in formwork systems.
Adjustable Column Formwork Clamp	Weight: 25-28KG/SQM Material: Q235 Steel Color: Silver or Custom Adjustable size range: 600-5500mm Surface treatment: Galvanized or Painted	Used in column formwork systems to secure panels and prevent deviation.
Formwork Clamp	Weight: 2.8KG/4.4KG (by production process) Material: Q235/Q450/Q345 Size: 430/434mm Process: Casting Iron or Forging Color: Gold & Silver or Custom Surface treatment: Galvanized or Natural	Used in steel frame formwork systems to link and secure wall panels tightly.
Rapid Formwork Clamp	Weight: 4.3KG Material: Steel Process: Casting Iron or Forging Color: Gold & Silver or Custom Surface treatment: Galvanized	Used in steel frame formwork systems for quick linking and securing of wall panels.
Adjustable Steel Prop	Weight: 4.7KG-31KG (by size) Material: Q195/Q235/Q345 Normal Size: 2200-4000mm or custom Tube thickness: 1.5mm-3mm Outer tube diameters: 48/56/60mm Inner tube diameters: 40/48mm Color: Blue, Red, Yellow, Green or Custom Surface treatment: Dipping Painted	Supports slab panels and adjusts them to the same horizontal plane in slab formwork systems.
Push-Pull Prop	Weight: 12.18-43.78KG (by size) Material: Q235 Steel Size: 900mm+1800mm or custom Tube thickness: 1.5mm-3.0mm Outer tube diameters: 48/56/60mm Inner tube diameters: 40/48mm Color: Blue, Red, Yellow, Green or Custom Surface treatment: Spray Painted/Powder Coated/Galvanized	Supports wall panels and ensures proper alignment in formwork systems.
Flat Wall Tie	Weight: 0.094-0.225KG (by size) Material: Q235 Steel Size: 210,250,240,300,320mm Color: Silver Surface treatment: Galvanized	Links wall panels and ensures accurate positioning in aluminum alloy formwork systems.
Steel Prop Fork-Head	Weight: 2.5KG Material: Q195/Q235 Steel Height: 330mm or custom Size: 230*140mm or custom Sleeve thickness: 2.5/3.0/3.5/4mm Color: Silver Surface treatment: Galvanized, Painted or Custom	Supports H20 timber beams in H20 timber beam formwork systems.
Prop Nut	Weight: 0.32KG-0.72KG Material: QT450/Q235 Size: φ60mm, φ76mm Color: Customer Required Process: Ductile Iron Casting Surface treatment: Galvanized	Adjusts steel props in formwork support systems.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two production bases with over 32 years of manufacturing experience.

What do you do?

We provide professional implementation solutions, high-quality products, and efficient technical support services in formwork and scaffolding.

Do you provide samples? Is the sample chargeable or free?

Yes, we provide samples. Customers are responsible for shipping costs.

What do you need to make a brief design and quotation for our construction project?

We require architectural and structural drawings of the project.

How to get quotation?

For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop application plans based on your drawings.

How long does it take to make a brief design and quotation after providing structural drawings?

Typically 5-8 days to complete specific plans and detailed quotations.

How long is the estimated delivery time after contract signing?

Usually 30-60 days for stocking completion, depending on project complexity.

What are your payment terms?

T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
